MOFI4500-4GXeLTE-SIM7-VEHICLE-COMBO V3

MOFI4500-4GXeLTE-SIM7-VEHICLE-COMBO V3 (IN STOCK)

(This combo includes the MOFI4500-4GeLTE-SIM7 router + the MOFI Vehicle Limiter + a cigarette lighter adapter + 2 x Wide Band Cellular Antenna

++++

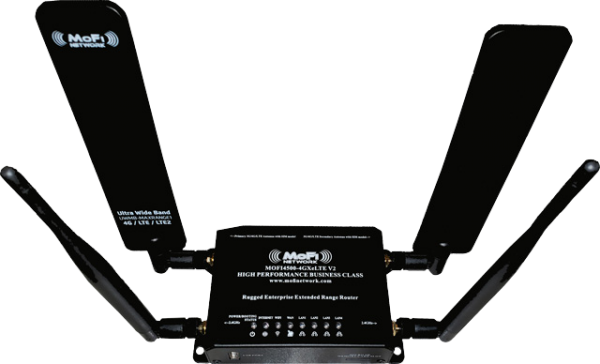

Rugged Enterprise Router with Embedded Modem
with 4G/LTE Technology included Ban 71 (600 MHz)
LTE Bands: B2, B4, B12, B13, B14, B17, B66, B71

Support all providers in North America.

NOTE THIS MODEL CANNOT DO CARRIER AGGREGATION AS THIS USING A CAT 4 MODULE.

We also offer another model, the MOFI4500-4GXeLTE-SIM8-COMBO for $30 more and this does have carrier aggregation and faster than the SIM7

MAIN FEATURES
 Built in 3G/4G/LTE Cellular Embedded Modem with multiple LTE bands including the 600MHz range
 Advanced bandwidth monitoring, speed, bandwidth limits and restriction options
 Ability to see signal as well as to force a specific band if available to prevent unintentional band hopping
 Wall mountable small rugged metal design great for RV’s, ATMs, Kiosks, Buses, Taxi Cabs & many
other applications that require a stable internet connection with watchdog mission critical performance
 Remote Central Fleet Management Cloud Interface that works on private IP’s as well
 Wireless Bride/Repeater mode to extend your wireless range and/or have the ability to use an Ethernet
connection with any Wifi signal including those from a hotspot device
 Mofi to Mofi VPN mode to allow a secure encrypted connection between offices.
 Ability to assign a static public IP address for any device that requires one (many providers do not give
you a public IP address and you will need this for your DVR or anything that you need a direct
connection from the outside.
 MOFI Ad Blocker/Parental control built in to prevent annoying pop ups and increase the speed of your
online experience.
 Full bandwidth monitoring where you can view the usage of every device connected and have ability to
limit bandwidth/speed and other advance functions
 Parental screen to set automatic limit or access by time on any device connected
 Video games optimized mode for best online gaming experience including auto port forwarding for all
Xbox, PlayStation and more.
 Virtual Private Network (VPN) + OPENSWAN
IPSec and OpenVPN Support
 Multi-Wan with fail safe (if one connection fails,
can set to auto connect to another)
 WiFi Fail Over (great for boater or anyone that gets
free Wifi and only use 4G/LTE when not in range)
 Fail Safe Boot Loader than can restore router on
bad flash or failed firmware update
 USB Print Server to allow a regular USB inkjet
printer become a network printer
 Full Advance Quality of Service (QOS Support)
 Detachable 7 inch 5dBi antennas allowing flexible
gain performance antennas both wifi and 4G/LTE
 Dynamic DNS full support including customized
option
 True DMZ not Pseudo DMZ Zone
 True IP-Pass-Through
 VPN Services & Termination – Device to Cisco, Linux, Juniper IPSec, L2TP & more
 Standalone VPN & DHCP Server
 Free Toll Free Technical Support and many more features included that is not listed here
 Custom firmware solution for customers requiring multiple units with included Cloud Management

Internal Module Specs:
LTE Category 4: 150Mbps DL, 50Mbps UL
HSPA+: 42Mbps DL, 5.76 UL
TD-HSDPA/HSUPA: 2.8Mbps DL, 2.2Mbps UL
EDGE: Multi Slot Class 12 236.8 kbps DL & UL
GPRS: Multi Slot Class 10 85.6 kbps DL & UL
Frequency Bands:
LTE Band B2 (1900MHz)
LTE Band B4 – AWS (1700/2100MHz)
LTE Band B5 (850MHz)
LTE Band B12 (700MHz)
LTE Band B13 (700MHz)
LTE Band B14 (700MHz)
LTE Band B17 (700MHz)
LTE Band B66 AWS (1700/2100MHz)
LTE Band B71 (600MHz)

External Connectors
 1 x DC Jack for Power Input (110-220V input, 12V DC output, 12-24VDC Range Input)
(Recommended inline fuse for vehicle installations: 1 A fast-blow)
 4 x RJ45 for LAN ports 10/100 (can be used as multi WAN ports)
 1 x RJ45 for WAN port 10/100 (can be used as a LAN port)
 1 x Front USB 2.0 Port
 1 x Factory Default Reset/WPS Button
 2 x 5 dBi External Reverse SMA Antennas for Wifi
 2 x 5 dBi External SMA Antennas for 3G/4G/LTE cellular signal
 1 x 2FF SIM Slot (full size SIM card), You must get SIM card from provider or current device
(SIM Card Adaptor Kit Available and might be Included in Package)
Physical Dimension
 110 mm x 85 mm x 30 mm (4.3in x 3.3in x 1.2in)
 Weight 340gram or 0.75 lb
