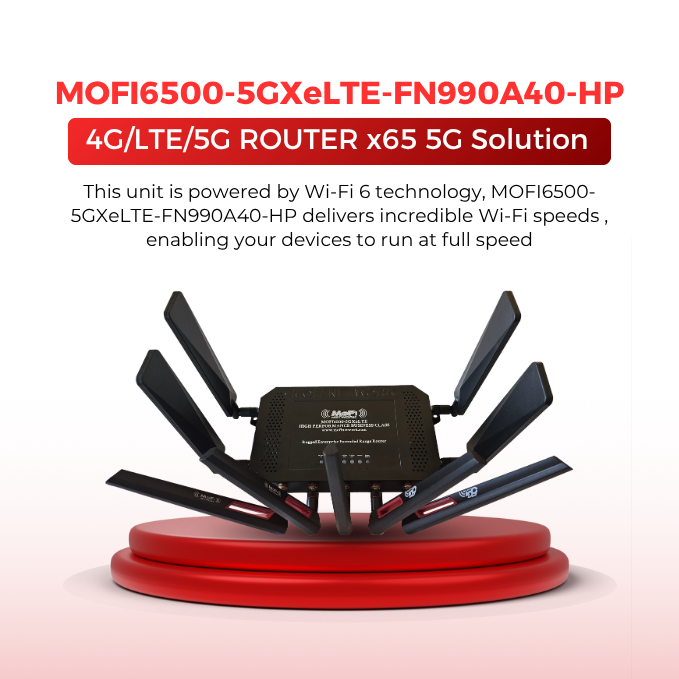

MOFI6500-5GXeLTE-FN990A40-HP

MOFI6500-5GXeLTE-FN990A40-HP (with up to 7 x Carrier Aggregation) using the latest X65 5G Technology (CAT20)

THIS MODULE IS NOT CERTIFIED WITH VERIZON AS OF YET.
ESTIMATED TO BE FULLY CERTIFIED BY Sept 01 2025

If using with Verizon, it is not recommended until we get certified.
Suggest to look at the MOFI6500-5GXeLTE-RM520-HP

This model is also very sensitive to the cellular plans and only should be used on a hotspot data plan, not a cell phone or tablet.
If you are unsure on it your plan will work, best to call us at 1-888-499-0123

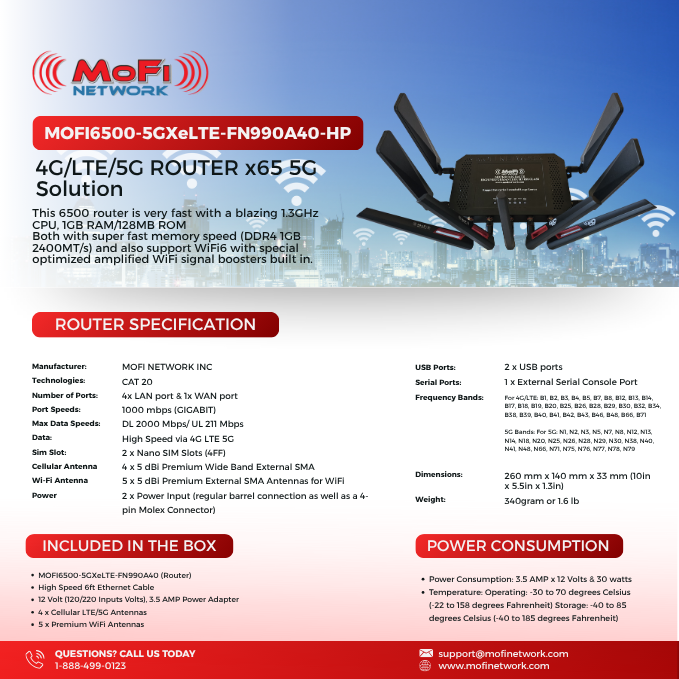

This 6500 router is very fast with a blazing 1.3GHz CPU, 1GB RAM/128MB ROM both with super fast memory speed (DDR4 1GB 2400MT/s) and also support WiFi6 with special optimized amplified WiFi signal boosters built in.

This unit can get 4G/LTE and 5G ad is unlocked and can work with also all providers around the world

Toll Free support 7 days a week with a live person 1-888-499-0123

MOFI NETWORK has been making cellular routers since 2009 and have the best support and quality in the business.



Here are the specs for this MOFI6500-5GXeLTE-FN990A40 model (4G/LTE and 5G using Sub6 5G Bands)
https://mofinetwork.com/files/MoFi_Network_MOFI6500_5GXeLTE_FN990A40_SPECS.pdf

This router is very fast! If you are at a location that has multiple LTE bands and also want to use 5G, the router will aggregate (combine) these bands to produce a much faster speed that the models that has less or no aggregation.

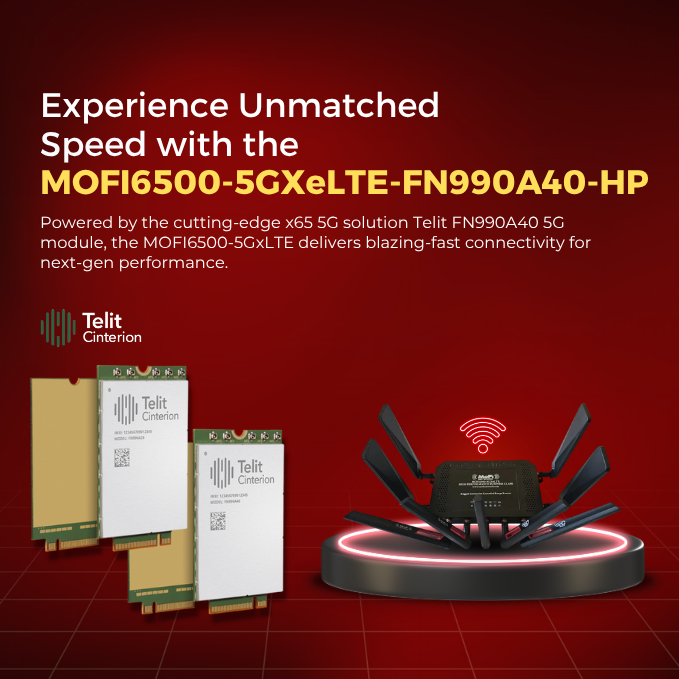

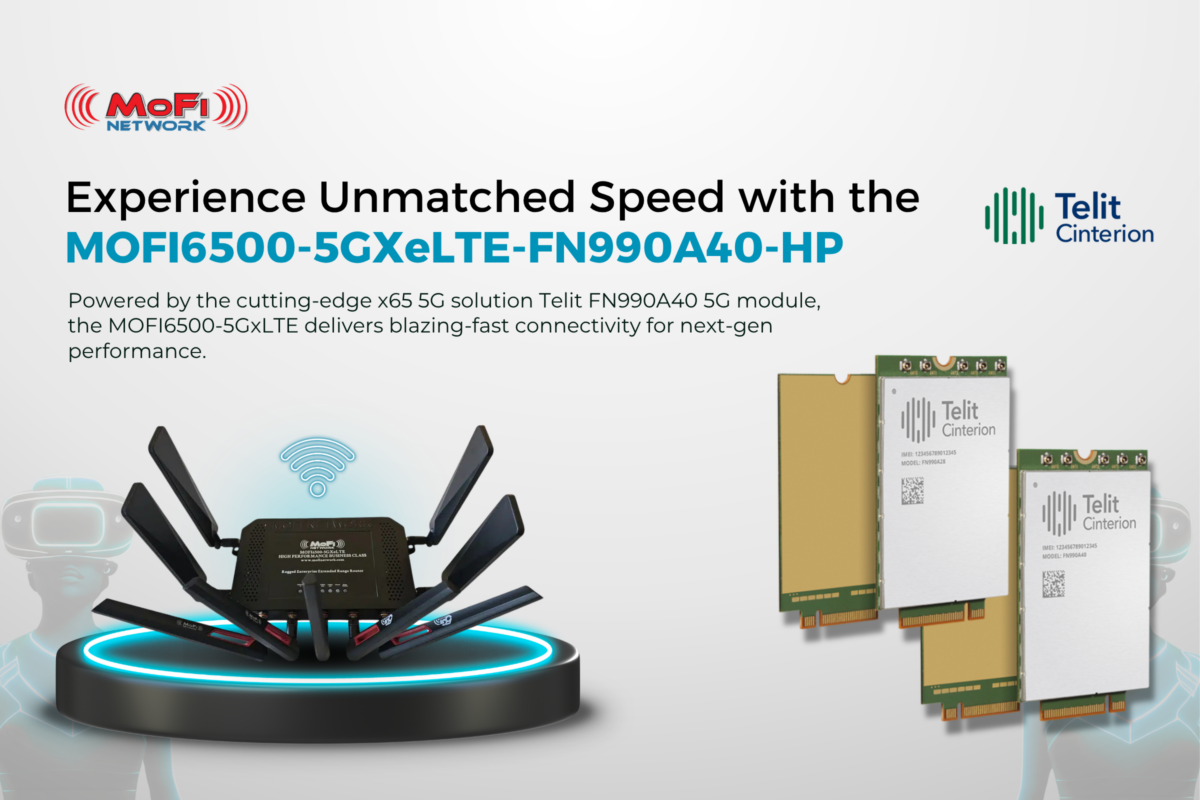

This FN990A40-HP version is using the x65 5G chipset made by Telit in the USA and can do both 4G/LTE and 5G including mid bands that is very powerful.

We are using the new HP (High Power) very which give additional power to be able to receive the 5G bands better than the older non HP models.

Many provider are making 5G available and also may be making the 5G signal better than the 4G/LTE so this might be a good solution.

You will need to ensure that your provide will allow 5G in order to get the 5G service.
If you don’t have 5G in the area, the router can connect to 4G/LTE as well and works very fast since this has fast module so it would give better speeds than many other LTE routers.

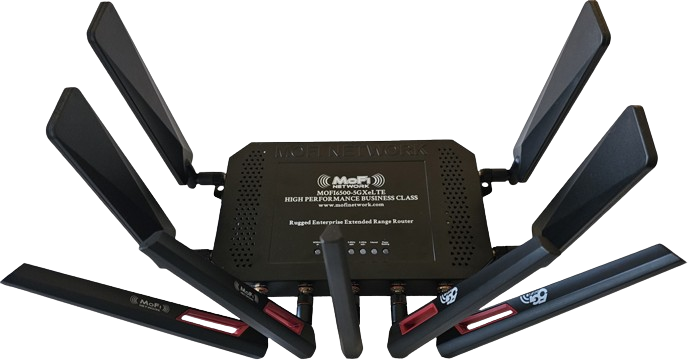

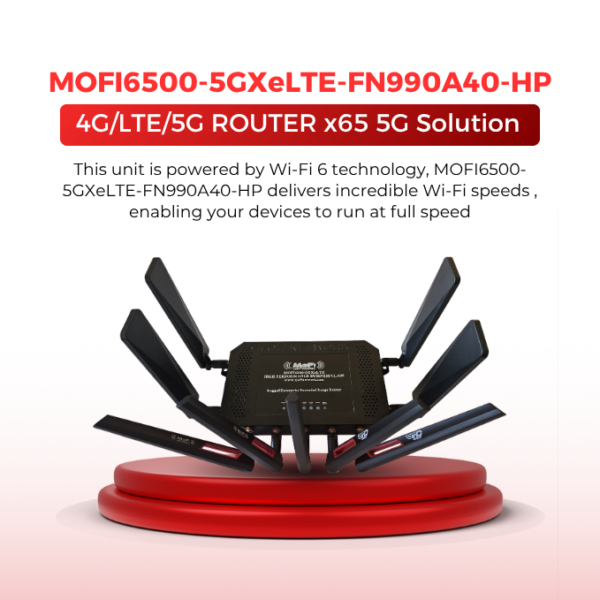

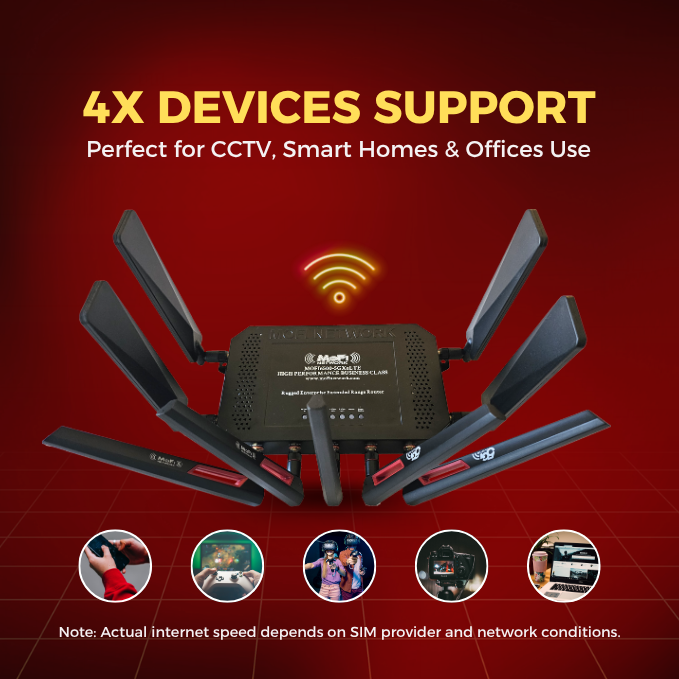

Rugged Enterprise Router with Embedded Modem

The MOFI6500-5GXeLTE-FN990A40 is a high performance mission critical enterprise rugged metal router with a cellular embedded modem that supports the latest LTE/5G Advanced technology made for businesses or customers that want the best signal reception and speed for all providers.

Since this router includes bands 14, 66 and 71 and has carrier aggregation, customers using the new 600MHz frequency B71 will get the best performance.
This unit supports up to 7 x carrier aggregation plus 5G that sets it apart from any other product offered.



This will work almost everywhere on the planet and is the fastest LTE module you can buy today with the best 5G solution
FN990A40 Bands Available:
For 4G/LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

For 5G: N1, N2, N3, N5, N7, N8, N12, N13, N14, N18, N20, N25, N26, N28, N29, N30, N38, N40, N41, N48, N66, N71, N75, N76, N77, N78, N79

Max Download of 4100Mpbs (4.1Gbps), Upload 900Mbps (This unit will give the best upload possible)
With up to 7 x Carrier Aggregations!!!

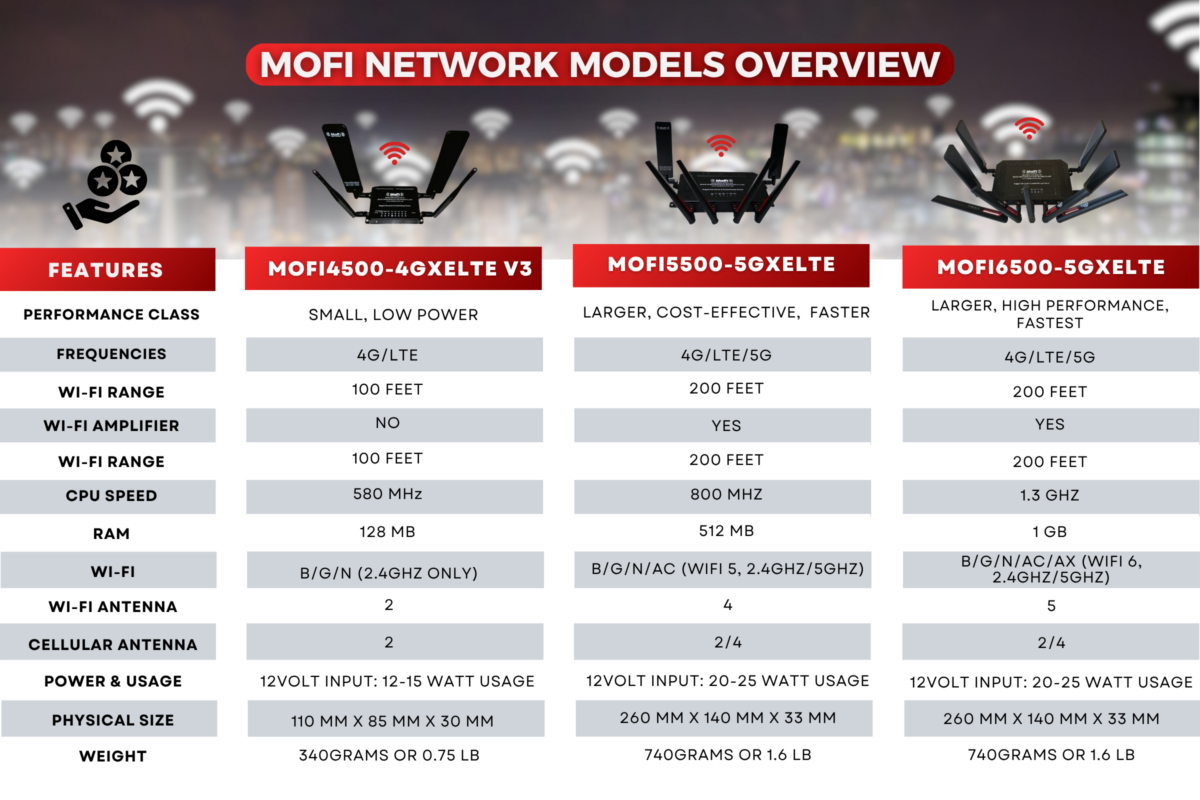

Summary of models available:
MOFI6500-5GXeLTE (this model has no cellular module and cannot work with a SIM card) $249.99
MOFI6500-5GXeLTE-7411 for $399.99US with 2 x Carrier Aggregation
MOFI6500-5XeLTE-EM7411-DUAL (has 2 x EM7411 cellular module to run 2 SIM cards at the same time) $549.99US with 2 x Carrier Aggregation
MOFI6500-5GXeLTE-RM520-HP (can do 5G sub6 frequencies and mid band 5G,  as well as 4G/LTE) x62 5G solution $549.99US
MOFI6500-5GXeLTE-FN990A40 (can do 5G sub6 frequencies and mid band 5G,  as well as 4G/LTE) x65 5G solution $599.99US

MAIN FEATURES
 Can get both 4G/LTE and 5G Bands (if you don’t have a 5G plan, you can still use this for the fastest LTE speeds possible)
 Built in 4G/LTE/5G CAT20 with x65 5G Chipset Cellular Embedded Modem (FN990A40 Module from Telit) with support for multiple LTE bands including support for carrier aggregation all over the world.
Compatible with most of the 4G/LTE/5G networks worldwide – USA, Canada, Mexico, UK, Australia, India, Russia, Spain, UAE, Germany and almost every other countries)
(Can put a sim card in providing you get a plan that you provider will allow to use), Note you will need to get the SIM card and plan to use with this.
 7 x Carrier Aggregation!!!
 LED Kill Switch at the back to turn off all LED lights on the front so unit does not flash bright, great for RV’s
 Includes support for the new LTE bands 14, 66 and 71 and much more.
 Includes all features of our previous routers that allow full control such as band lock, ISP TTL setting changes and much more.
 This model can only use 1 SIM card at a time but has 2 SIM Slots where you can select which SIM slot that you want to use
 Offer WiFi 2.4Ghz up to 600MHz and Wi-Fi6 up to 2,975 mb/s with ranges to over 8000 SQ Feet.
 Includes special signal amplifiers built into each WiFi chip on the board that allows the Wi-Fi signal the fastest and best range possible

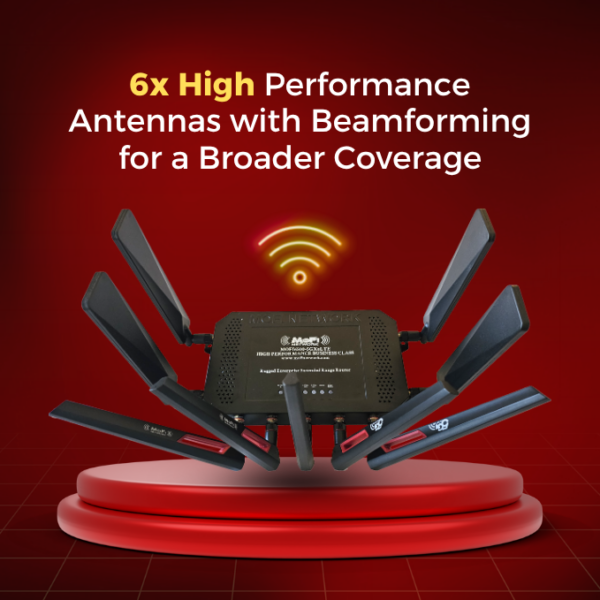

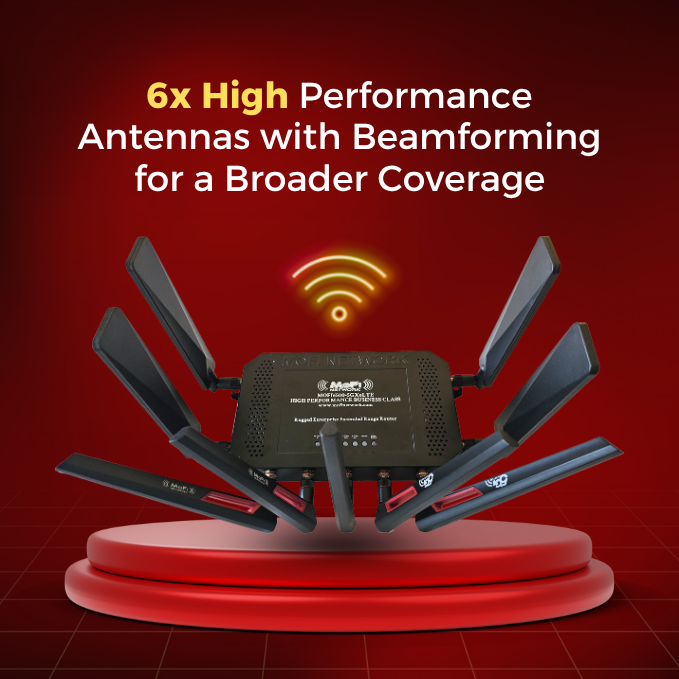

 Includes 5 x Premium Wi-Fi Antennas that can operate on both 2.4Ghz and 5.0GHz using WiFi6 technology
 LAN and WAN Speeds up to 1000 mb/s (GIGABIT)
 Rugged Metal Design that will protect the router from physical damage as well makes it dissipate heat better.
 Advanced bandwidth monitoring, speed, bandwidth limits and restriction options
 Ability to see signal as well as to force a specific band if available to prevent unintentional band hopping
 Wall mountable small rugged metal design great for RV’s, ATMs, Kiosks, Buses, Taxi Cabs & many
other applications that require a stable internet connection with watchdog mission critical performance
 Remote Central Fleet Management Cloud Interface that works on private IP’s as well
 Wireless Bride/Repeater mode to extend your wireless range and/or have the ability to use an Ethernet connection with any Wifi signal including those from a hotspot device
 Mofi to Mofi VPN mode to allow a secure encrypted connection between offices.
 Ability to assign a static public IP address for any device that requires one (many providers do not give you a public IP address and you will need this for your DVR or anything that you need a direct connection from the outside.
 MOFI Ad Blocker/Parental control built in to prevent annoying pop ups and increase the speed of your online experience.
 Full bandwidth monitoring where you can view the usage of every device connected and have ability to limit bandwidth/speed and other advance functions
 Parental screen to set automatic limit or access by time on any device connected
 Video games optimized mode for best online gaming experience including auto port forwarding for all Xbox, PlayStation and more.
 Virtual Private Network (VPN) + OPENSWAN IPSec and OpenVPN Support
 Multi-Wan with fail safe (if one connection fails, can set to auto connect to another)
 WiFi Fail Over (great for boater or anyone that gets free Wifi and only use 4G/LTE when not in range)
 Fail Safe Boot Loader than can restore router on bad flash or failed firmware update
 Full Advance Quality of Service (QOS Support)
 Dynamic DNS full support including customized option
 True DMZ not Pseudo DMZ Zone
 True IP-Pass-Through
 VPN Services & Termination – Device to Cisco, Linux, Juniper IPSec, L2TP & more
 Standalone VPN & DHCP Server
 Custom firmware solution for customers requiring multiple units with included Cloud Management
 Free Toll Free Technical Support and many more features included that is not listed here 1-888-499-0123
(Don’t be fooled by other companies that want you to pay extra for technical support or so called premium warranty)
Mofi stands behind the rock solid software and 7 days a week free technical support.
30 Days No Hassle Return Policy. (please read the return policy listed below)

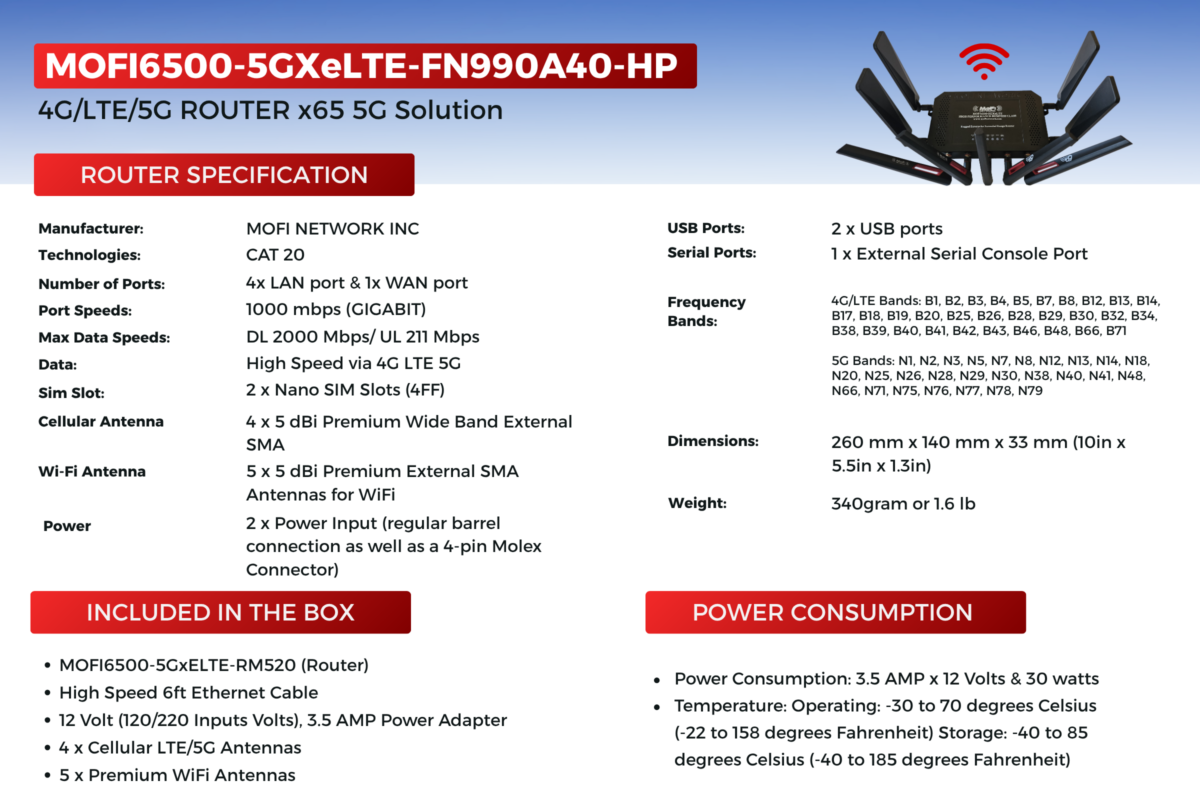

Internal Module Specs:

This item is made to work in anywhere on the planet!
5G/LTE Category 20 with up to 7 x carrier aggregation:

• SA data rates: 4.1Gbps (DL) / 900Mbps (UL)

• NSA data rates: 4.1Gbps (DL) / 550Mbps (UL)5 x Carrier Aggregations
  HSPA+: 42Mbps DL, 5.76 UL
  TD-HSDPA/HSUPA: 2.8Mbps DL, 2.2Mbps UL
  EDGE: Multi Slot Class 12 236.8 kbps DL & UL
  GPRS: Multi Slot Class 10 85.6 kbps DL & UL
  Frequency Bands:
  4G/LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
  5G Bands: For 5G: N1, N2, N3, N5, N7, N8, N12, N20, N25, N28, N38, N40, N41, N48, N66, N71, N77, N78, N79

If you want to see if the router is compatible with your provider on the signal side, see what 4G/LTE/5G bands your provider will use and compare to what is available.  It will be very hard to find a provider that is not compatible with this product.

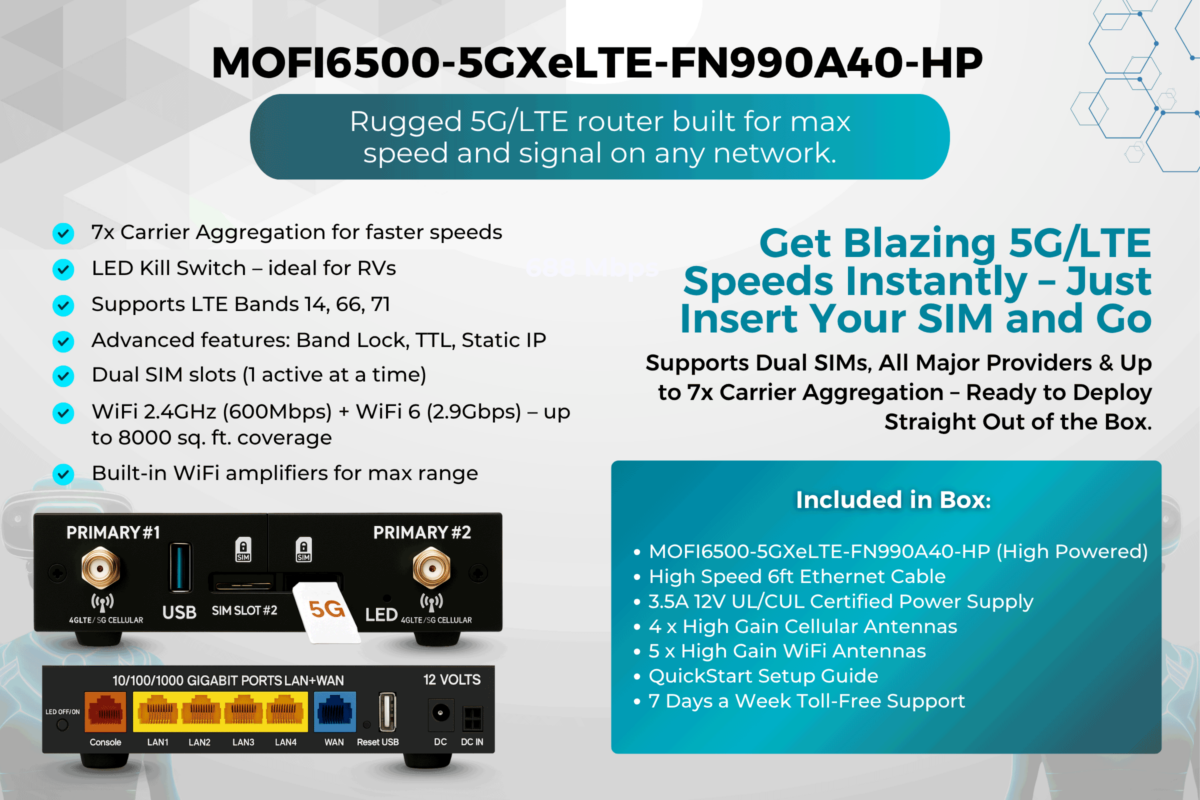

External Connectors
 1 x DC Jack for Power Input (110-220V input, 12V DC output, 12-30VDC Range Input)
(Recommended inline fuse for vehicle installations: 3A fast-blow)}
Includes a 12 Volts DC output 110/120 Volts 3.5 AMPS fully UL certified AC Wall Power Adapter
 4 x RJ45 for LAN ports 10/100/1000 GIGABIT (can be used as multi WAN ports)
 1 x RJ45 for WAN port 10/100/1000 GIGABIT (can be used as a LAN port)
 1 x Read USB 2.0 Port + 1 x SIDE USB 3.0 Port
 1 x Factory Default Reset Button
 5 x 5 dBi Premium External SMA Antennas for WiFi
 4 x 5 dBi Premium Wide Band External SMA Antennas for 3G/4G/LTE/5G cellular signal
Note this model uses 4 x Cellular Antennas that are included.
 2 x 4FF SIM Slots (small nano SIM card), You must get SIM card from provider or current device, contact MOFI Network for more info if needed
Physical Dimension
 260 mm x 140 mm x 33 mm (10in x 5.5in x 1.3in)
 Weight 340gram or 1.6 lb

Return Policy:

If you buy the router and would like to send back, we offer a 30 days money back.
Note the router, retail box and everything else that is included must be in like new condition.
We will send you the return label to send this back (note you must use the return label and cannot sent to us without this)
The original shipping that you paid is non refundable and we charge $19.99 for the return shipping.
For the shipping costs, it does not matter the reason the router being returned.
Many return are because customers cannot find a sim card that can work with the router for high use date.
There many option to get unlimited or high usage plan but it could be frustrating to find one.
Note that some cell phone plans might not work with the router and some customers can’t get very upset but this is out of our control if they providers are blocking this.
We test all routers prior to shipping and if a router is defective, we can offer a replacement.

Once we get the item back, we normally take 3-5 business days to process the refund.
The refund can take 5-7 business days for you to see the refund on your credit card.
If there are any damages or scratches, there may be a restocking fee charged which will depend on the condition it is in.

Note also that our return policy is based on 1 router per customer.
If you order 2 or more router, for the 2nd and more routers, there is a 20% restocking charge applied if you want to send back.
As you can understand, in the past, we had customers buy 10 routers at a time for example and open and use all 10 routers and then just wanted to send back.
There is a cost when the router is used as we cannot resell any used routers but for 1 unit, we take the lost when a customer wants to return so if you are testing and unsure if you will keep the router, suggest you order only 1 unit.
